PASSIVE COMMERCIAL REVERSE OSMOSIS SYSTEM
Watermark certification is not a requirement with commercial RO systems unless you plan to use this unit in a domestic household connected to mains water supply then you may require housings with Watermark certification which we can supply for $100 extra and the onus is on you to let us know if you require Watermark certification at the time of ordering as changing this after the unit has been dispatched will cost up to $500 more if we have to ship a unit to you, have it chipped back and change the housings to be Watermark certified ones then ship back to you.
Our range of passive RO units for commercial applications are designed to operate optimally at town water pressure [optimal range is 400kpa to 600 kpa]. These systems don't require power as they have no pumps or electronic controls. This RO unit is assembled and tested in our Queensland factory before shipping to ensure proper operation.
The reverse osmosis process results in the total dissolved solids (TDS) count dropping by between 90% to 95% depending on your local environmental factors, system design and waste ratio. This purification process is commonly considered to be the most effective method of purification available, and will consistently produce water with the lowest level of contaminant. Where water of a higher standard (99-100% contaminant reduction) is required, mixed resin post filters may be fitted on request for an extra charge.
This system will produce up to 3,800 litres per day depending on your selection in the drop down menus given optimum feed water pressure. *Note: Your local water pressure and quality of the feed water can cause this estimate to vary by up to 15% as the recommended waste ratio will be higher if you are filtering water with a TDS reading above 500ppm.
This unit is tested on a town water supply, if you plan to use this unit on any other kind of supply (bore, creek, tank etc.) we strongly recommend performing basic water tests (TDS, Salinity, Hardness/Calcium and Iron) to determine whether the water is within the systems operating parameters. If you are unsure as to whether this unit suits your needs, feel free to send us a message with any details you have on your water.
All of the parts that come into contact with the water in our systems are manufactured from BPA free food grade plastics. All of the filters and parts that we source are of the highest quality and meet the required quality standards.

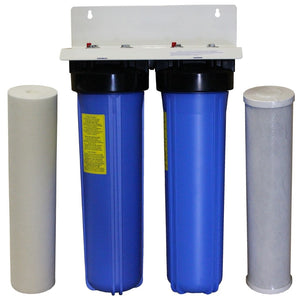

This system can be optioned with either a marine grade stainless steel bracket and screws which won't rust or a painted mild steel bracket for indoor use [white painted bracket per 2nd listing image], standard and high volume carbon pre-filters and membrane flow rate. The 20 inch filters are capable of filtering roughly twice as much water between filter changes and the 20"x4.5" pre-filters are recommended for the higher volume units.

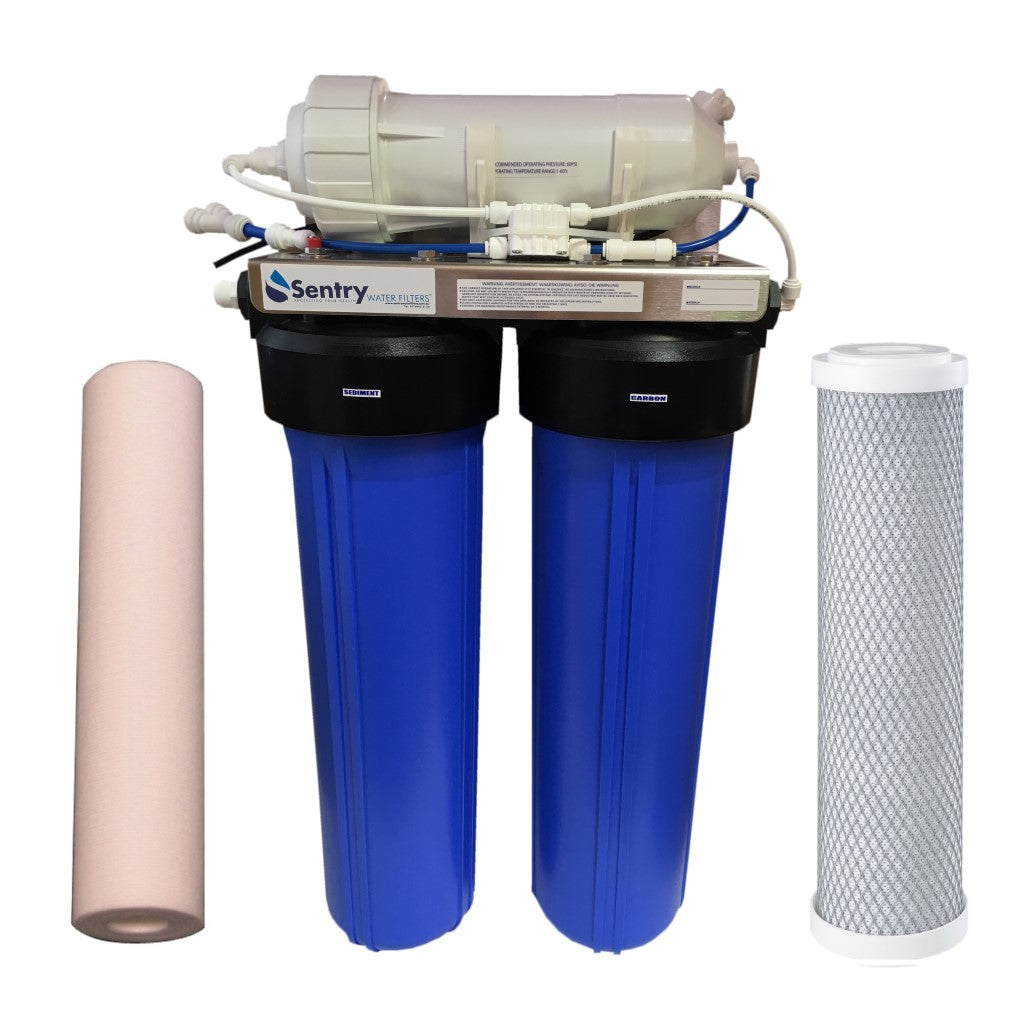

SYSTEM INCLUDES:
- 1x twin wall mount bracket per selection menus.

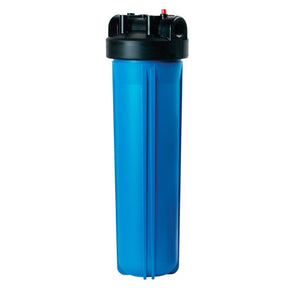

- 2x big blue pre-filter housings with 1"BSP ports.

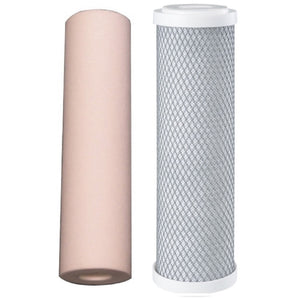

- 1x 1 micron poly spun sediment disposable filter.
- 1x standard** / higher*** volume carbon block filter.
- 400GPD* / 500GPD* / 800GPD* or 1000GPD* membranes.
- Appropriate ring spanner to loosen pre-filter housings.
- Installation kit including a roll of tubing and tap adapters.
* GPD = Gallons per 24 hours x 3.8 litres for litre per 24 hours.

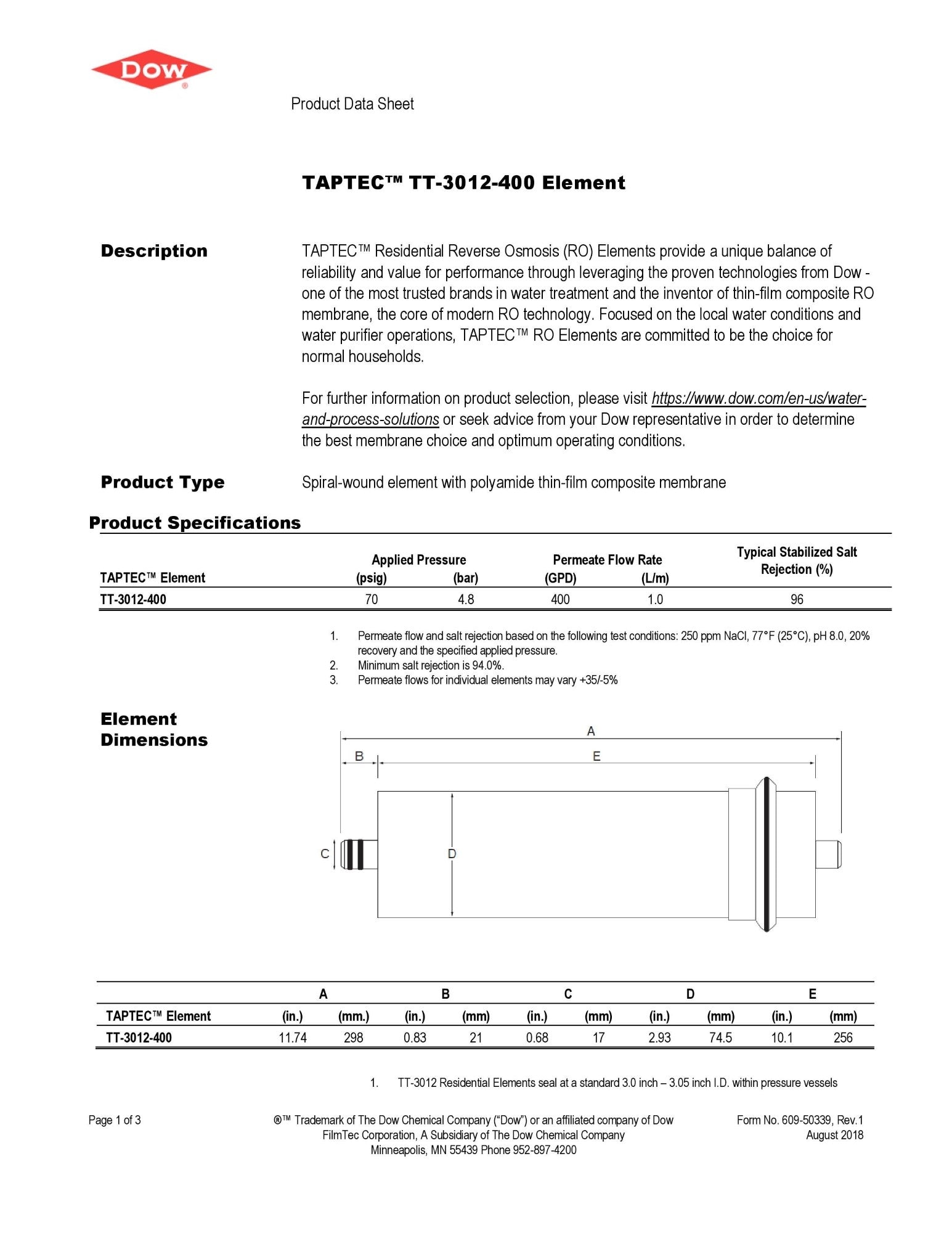

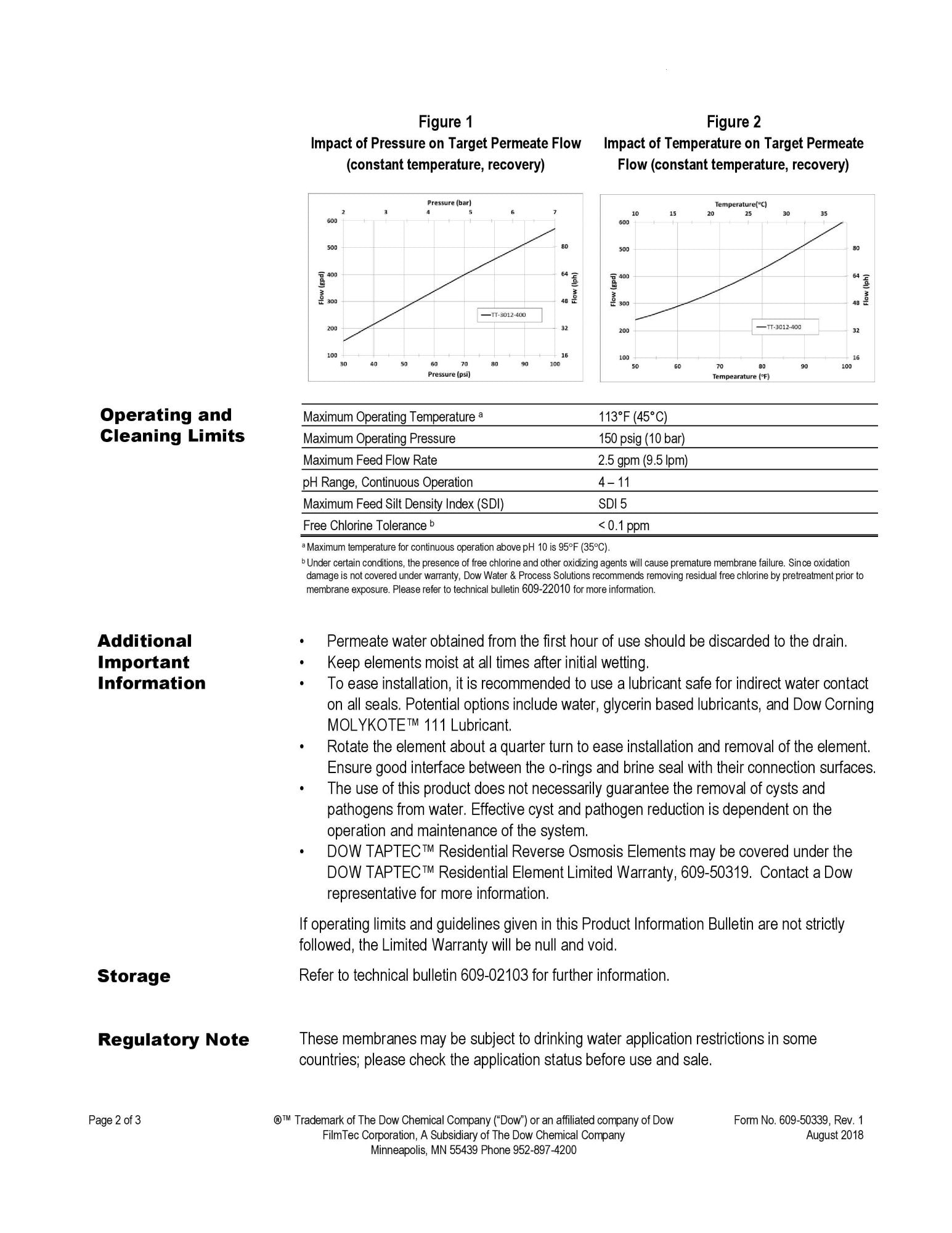

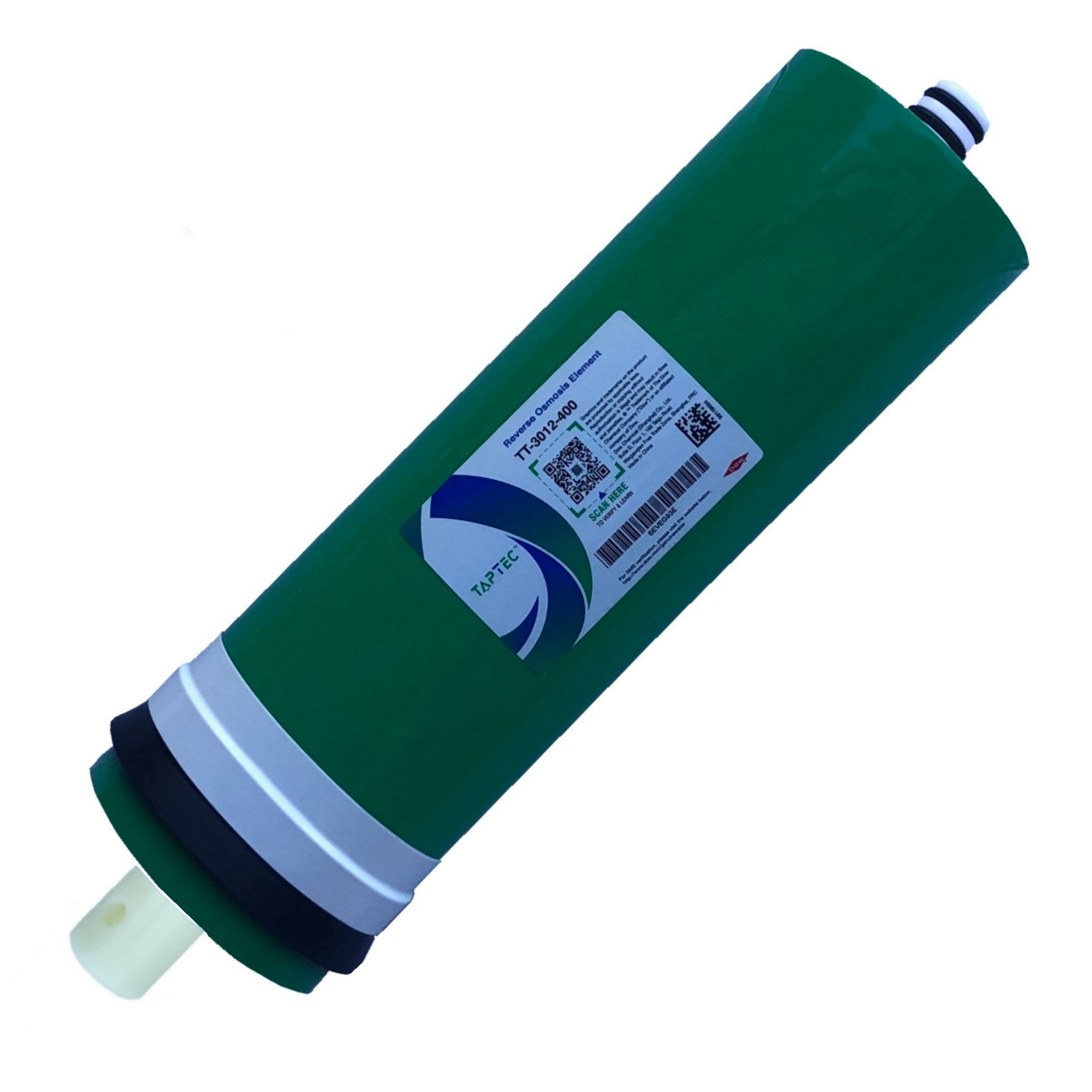

* 400GPD + 800GPD units use Dow Dupont Taptec membrane.

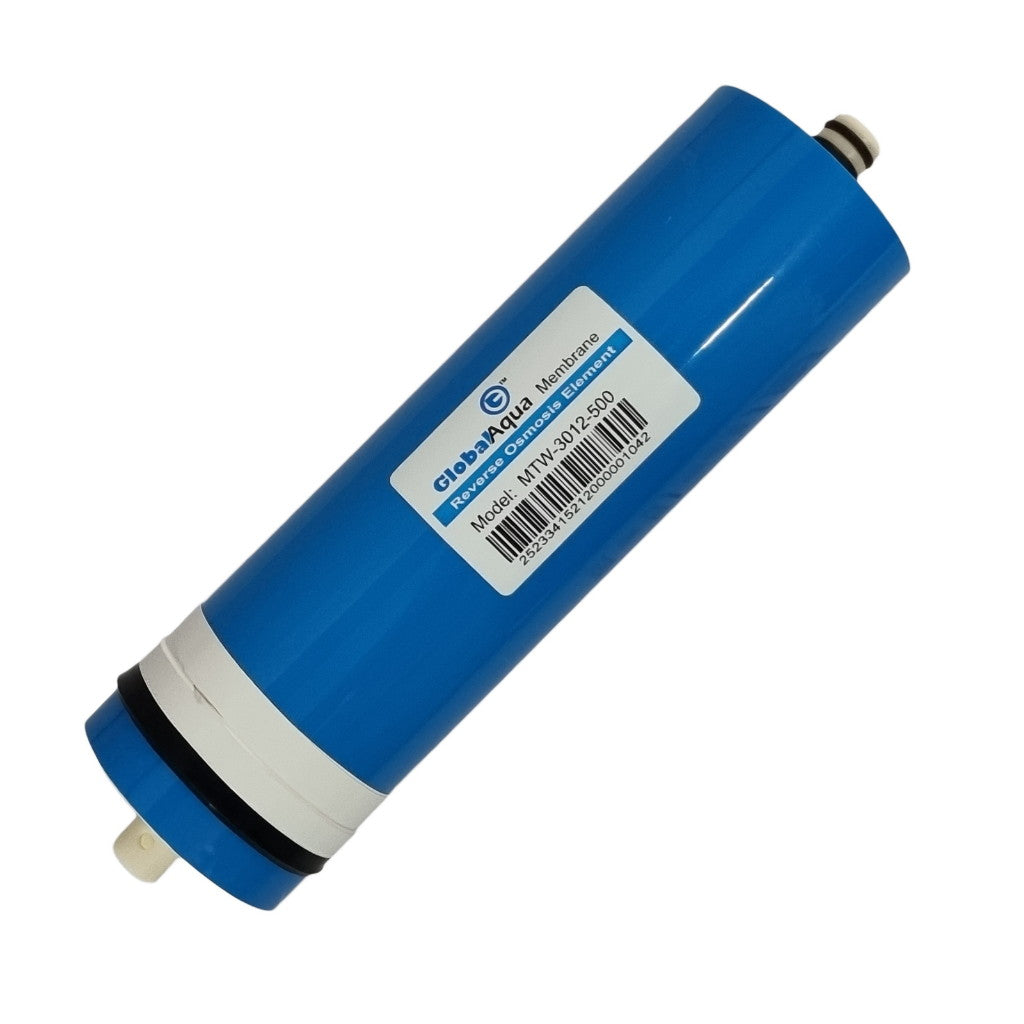

* 500GPD + 1000GPD units use Global Aqua RO membrane.
* 800GPD + 1000GPD units have 2x RO membranes in parallel
** standard 20"x4.5" filters remove chlorine for +/- 70,000 litres
*** higher volume carbon filter will remove around 3x more
chlorine than standard volume ones and chlorine needs to be
removed by the pre-filters as it damages the membrane
SYSTEM REQUIREMENTS:
- Minimum feed pressure: 60psi
- Optimum feed pressure: 75-85psi
- Optimum temperature: 10C-40C
This RO unit carries a full 24 month warranty on all parts supplied in the original order, this is subject to our standard terms and conditions listed in our operating manual
NB NOTE: Watermark certification is not a requirement with commercial systems unless you plan to use this unit in a domestic household connected to mains water supply then you may require housings with Watermark certification which we can supply for $100 extra and the onus is on you to let us know if you require Watermark certification at the time of ordering as changing this after the unit has been dispatched will cost up to $500 more if we have to ship a unit to you, have it chipped back and change the housings to be Watermark certified ones then ship it back to you.
