Sentry Water Filters

STRAIGHT Quick Push Connectors Water Filter Tube Speed Fit Connector

$17.50 AUD

Sale Sold out

Taxes included. Shipping calculated at checkout.

STRAIGHT QUICK PUSH CONNECTORS WATER FILTER TUBE SPEED FIT CONNECTOR

Water Filter Tube Speed Fit Connector

NB: IF YOU SELECT THE DELIVERY WITHOUT TRACKING OPTION WE CAN'T ASSIST YOU WITH WHERE YOU ITEM IS AFTER WE'VE DISPATCHED IT AND CAN'T GIVE YOU ANY UPDATES OR ETA SO ONLY CHOOSE THIS OPTION IF YOU ARE OKAY WITH THAT AND DON'T MIND WAITING

Select fitting from the drop down menu

Connector Type	Item Details	Measures OD

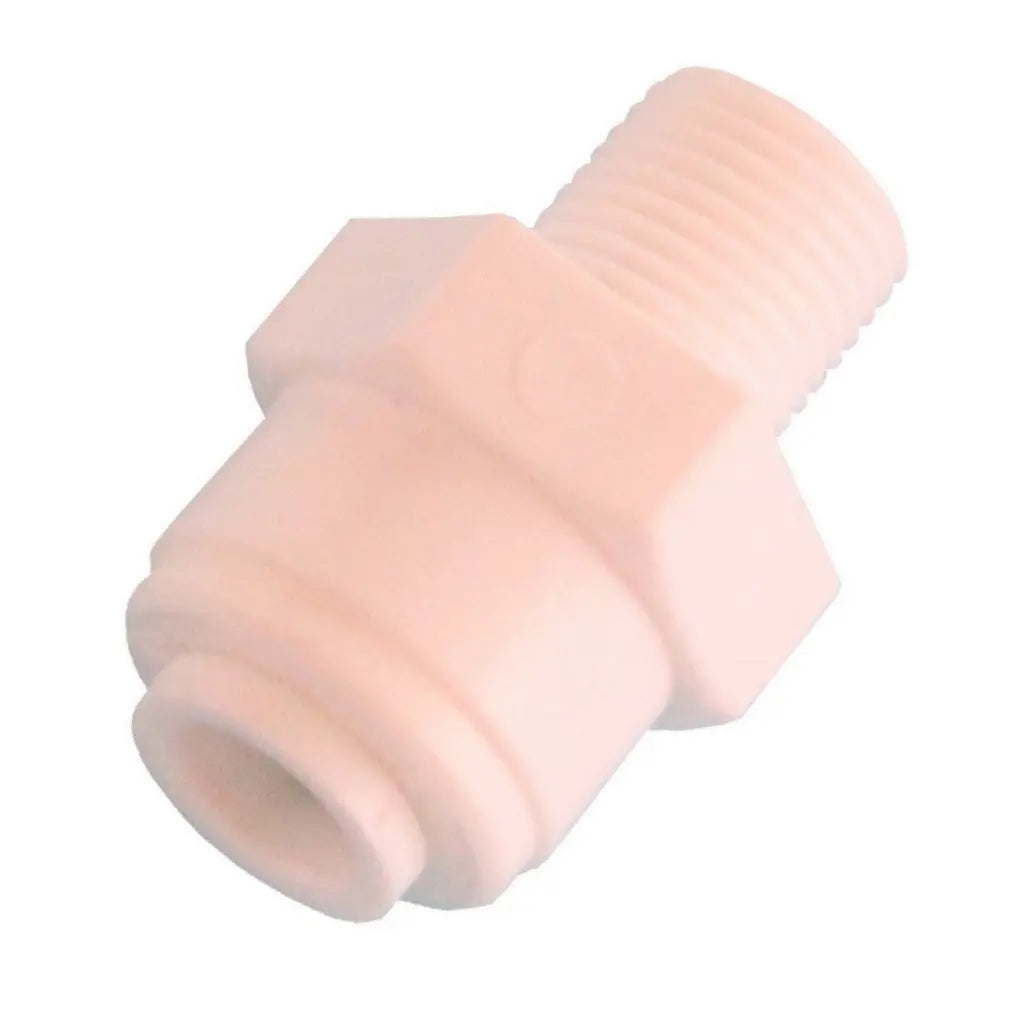

1/8”M to 1/4”T STR	1/8”NPT Male Thread [M] to 1/4” Tube [T]	M=10mm x T=6mm
1/8”M to 1/4”STEM	1/8”NPT Male Thread [M] to 1/4” Stem [ST]	M=10mm x ST=6mm

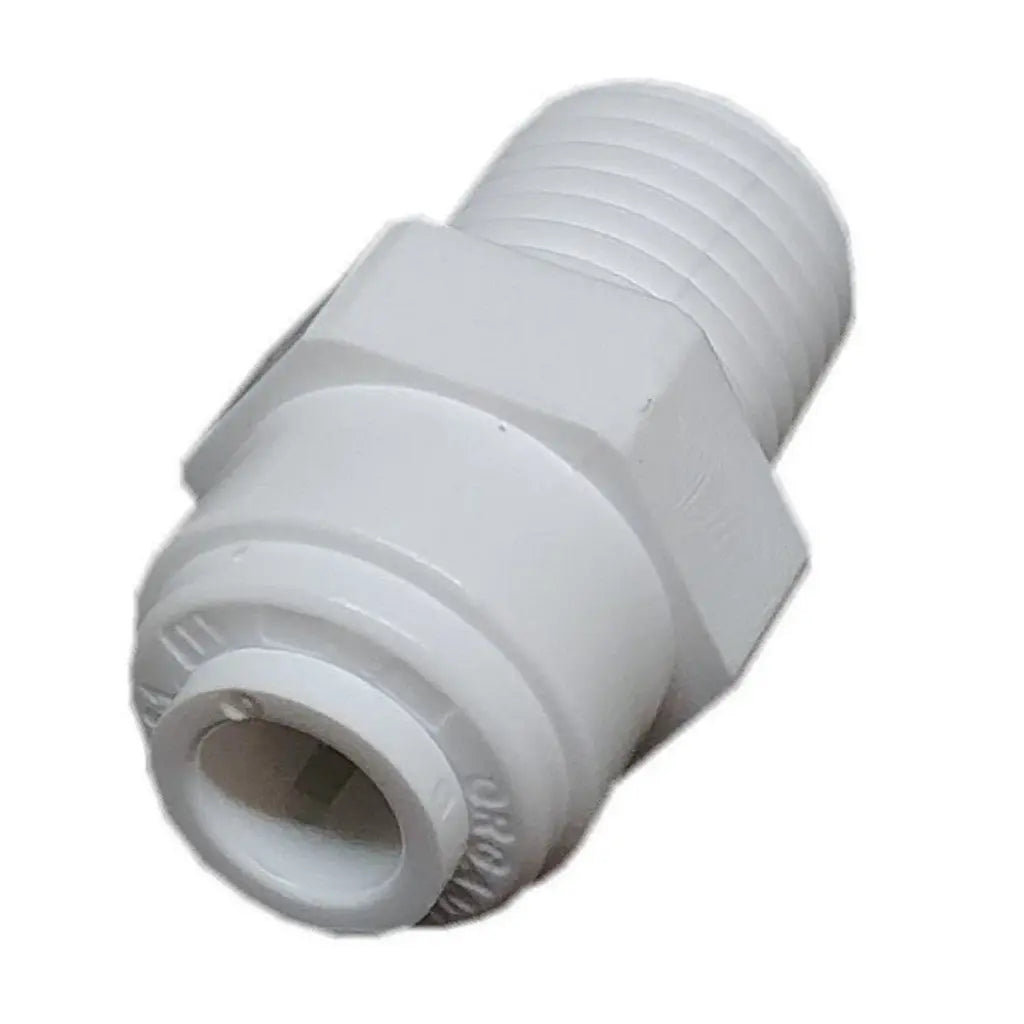

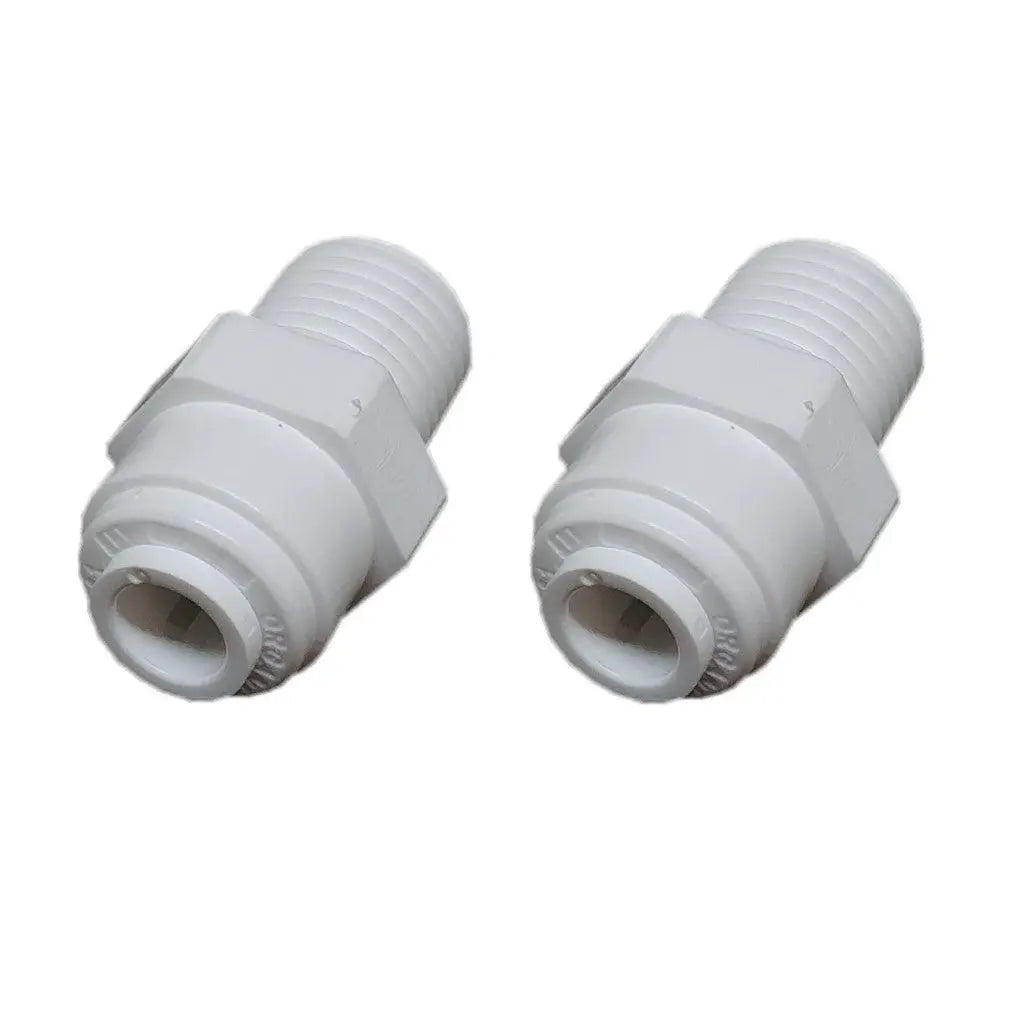

1/4”M to 1/4”T STR	1/4”NPT Male Thread [M] to 1/4” Tube [T]	M=12mm x T=6mm

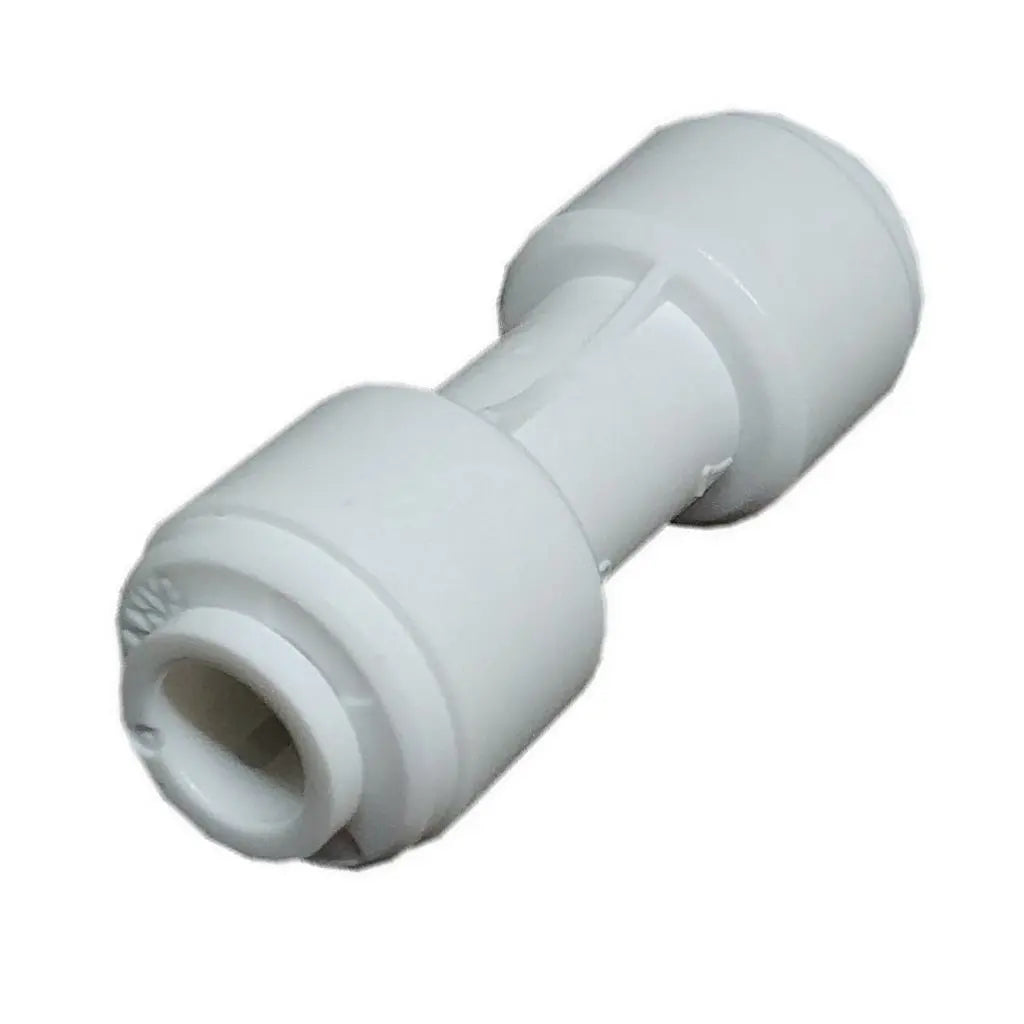

1/4”T to 1/4”T STR	Straight Joiner 1/4” Tube [T] to 1/4” Tube [T]	T=6mm x T=6mm
1/4”M to 1/4”STEM	1/4”NPT Male Thread [M] to 1/4” Stem [ST]	M=12mm x T=6mm
1/4”F to 1/4”T STR	1/4”NPT Female Thread [F] to 1/4” Tube [T]	F=12mm x T=6mm

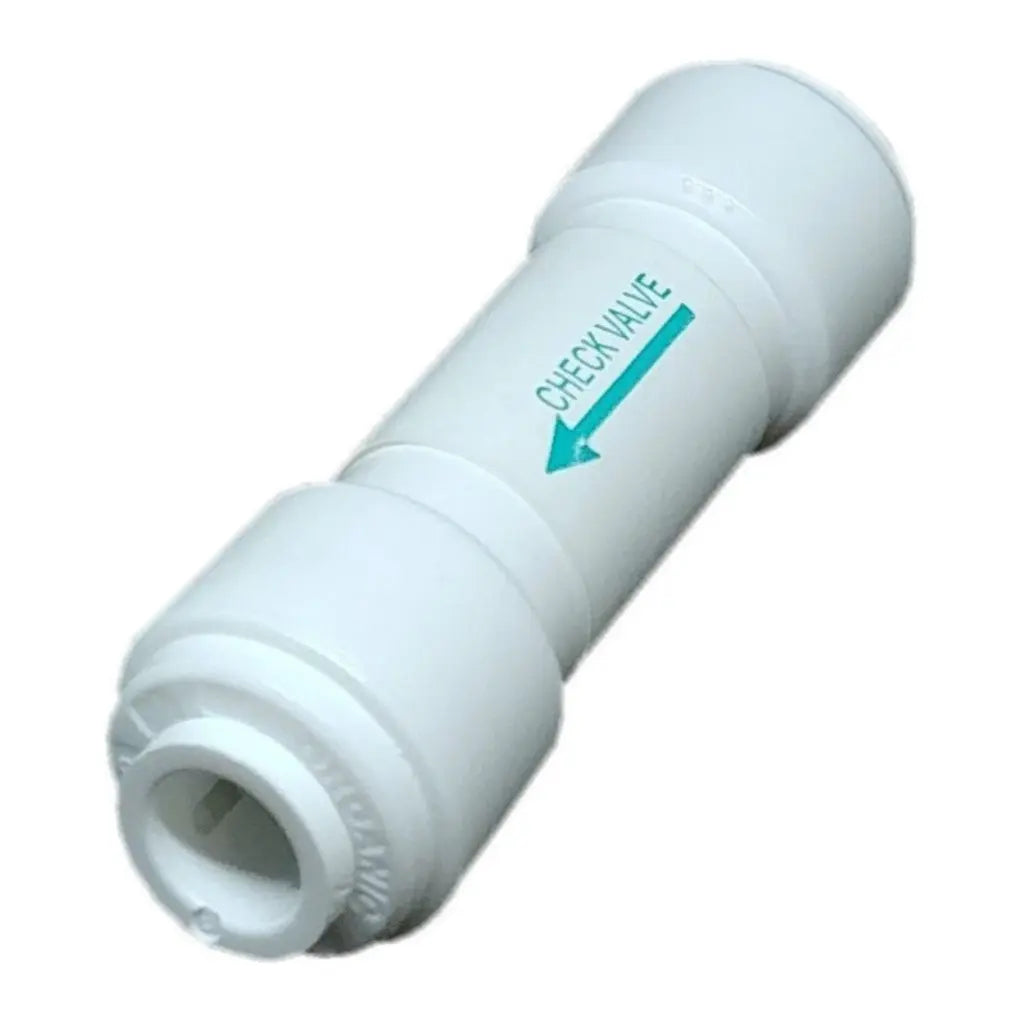

1/4”T to 1/4”T NRV	Check Valve + Joiner 1/4” Tube [T] to 1/4”[T]	T=6mm x T=6mm
1/4”M to 3/8”T STR	1/4”NPT Male Thread [M] to 3/8” Tube [T]	M=12mm x T=10mm
3/8”M to 1/4”STEM	3/8”NPT Male Thread [M] to 1/4” Stem [ST]	M=16mm x T=6mm
3/8”M to 1/4”T STR	3/8”NPT Male Thread [M] to 1/4” Tube [T]	M=16mm x T=6mm
3/8”T to 1/4”T STR	Straight Joiner 3/8” Tube [T] to 1/4” Tube [T]	T=10mm x T=6mm
3/8”M to 3/8”T STR	3/8”NPT Male Thread [M] to 3/8” Tube [T]	M=16mm x T=10mm
3/8”T to 3/8”T STR	Straight Joiner 3/8” Tube [T] to 3/8” Tube [T]	T=10mm x T=10mm
3/8”M to 3/8”S-STEM	3/8”NPT Male Thread [M] to 3/8” Stem [ST]	M=16mm x T=10mm
7/16”F to 1/4”T STR	Connect Faucet Shank Female [F] to 1/4”T	F=11mm x T=6mm
1/2”M to 3/8”T STR	1/2”NPT Male Thread [M] to 3/8” Tube [T]	M=20mm x T=10mm

According to regulatory standards any water filter system under constant water pressure [regardless of the brand or supplier] is required to be fitted with an AS3497 approved pressure reducing valve and back-flow prevention device which we have listed separately in our store. We also recommend that a leak detector shut off device is installed with any water filter and / or reverse osmosis system which is under pressure and is also for sale in our store.

Why Choose these Straight Quick Push Connectors?

These Water Filter Tube Speed Fit Connectors are essential fittings designed for quick, secure, and reliable straight connections in a wide variety of water filter and Reverse Osmosis (RO) systems. They simplify the process of setting up or maintaining your water lines by allowing the tubing to be quickly pushed into place, eliminating the need for complex threading tools.

Compact Design and Powerful Performance

This selection of straight connectors offers fittings to accommodate nearly any required connection type, including various tubing and thread sizes common in filtration. The options cover threaded National Pipe Thread (NPT) sizes from 1/8 inch to 1/2 inch for male (M) and female (F) connections, and push-fit tubing sizes of 1/4 inch (6mm) and 3/8 inch (10mm), denoted as Tube (T) or Stem (ST). For example, the 1/4 inch M to 1/4 inch T STR connects a 12mm male thread to 6mm tubing, while the 3/8 inch T to 1/4 inch T STR is a straight joiner for connecting a 10mm tube to a 6mm tube. A specialized option, the 1/4 inch T to 1/4 inch T NRV, functions as a check valve or non-return valve, preventing backflow between two sections of 1/4 inch tubing.

Seamless Integration and Safety/Delivery Notes

These push-fit connectors allow for simple, speed-fit integration into virtually any water filter system. A critical note is made regarding delivery: if the option without tracking is selected, the seller cannot provide updates on the item's location or Estimated Time of Arrival (ETA) after dispatch, and the buyer should only choose this option if they are comfortable with that condition. Furthermore, the description reminds customers that any water filter system under constant pressure must be fitted with an AS3497 approved pressure reducing valve and back-flow prevention device for regulatory compliance. Installing a leak detector shut off device is also highly recommended for all pressurized systems.
