WHOLE OF HOUSE UV STERILISING
ULTRA VIOLET TANK WATER FILTER

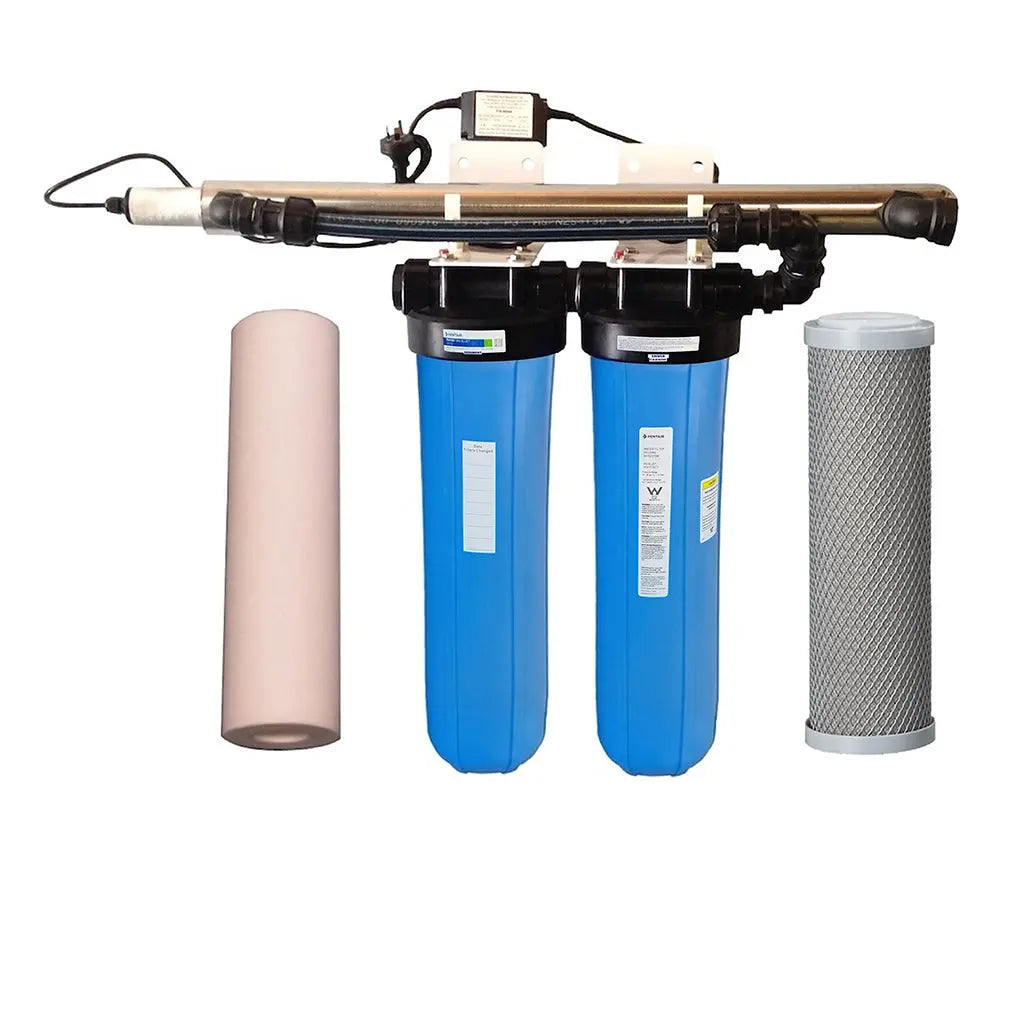

UV sterilising whole of house water filter with 1uM spun sediment + 0.5uM silver infused anti bacterial carbon block + final ultra violet water steriliser.
This system is well suited for medium to larger homes, can effectively sterilize water up to a maximum rate of +/- 45 litres per minute with the combination of pre-filters to remove cysts and the UV and is supplied with a 1"BSP female thread on the inlet and outlet for easy connection and you can download the UVG SLT brochure here.
Images 1-6 are included with this listing but image 7 and 8 is not and is a picture of a smaller 10"x4.5" system with a 25LPM UV steriliser for larger homes and is available in our online store as well as here.

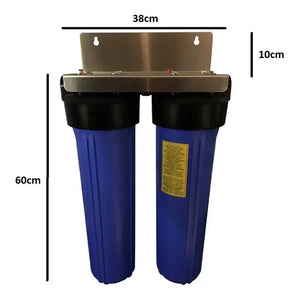

This unit measurements are depicted in the 2nd and 3rd listing image, and you'll need extra room on the side and bottom to be able to change the UV lamp and pre-filters. Although the main listing image shows this unit is assembled, we post it unassembled otherwise the size of the box it too large and the risk of fragile items like the lamp and quartz sleeve being damaged is too high.
Dependent on water turbidity [sediment level] and usage filters should last 12 months and it is possible the 1st sediment filters may need to be replaced sooner but this will be determined by your water quality.
If you want an advanced and highly effective water filter for filtering untreated water [rainwater tanks, dam, river and creek water] to specifically remove any bacteria, pathogens and micro-organisms that may be present but don't want a reverse osmosis this unit is well suited.
With these systems if they are installed very close to the home the first glass of water may be warm if the system has been standing for some time. This water won't be hot enough to burn you and is an indication the systems is working well so if it stops, you'll need to check your UV lamp and ballast. If this system will be installed close to the point of use you can consider selecting a thermal relief valve in the drop-down selection menu which will release water when it warms up to dela with this if required.
All of the parts that come into contact with the water in our systems are manufactured from BPA free food grade plastics. All of the filters and parts that we source are of the highest quality and meet the required quality standards.
FEATURES:
- High quality certified filter housings made from food grade materials
- 316 marine grade twin stainless steel mounting bracket and screws
- Pre-filter combination to last +/- 12 months based on water quality
- System has standard 1"BSP inlet and outlet standard threaded ports
- Parts are easy to fit to all standard readily available plumbing fittings
- You'll enjoy clear, pure great tasting water [Max flow = 50 litres a minute]
- 40w 4-Pin ultra violet lamp which should be changed every 12 months
- Indoor ballast [need cover or box] with power surge protection device
- Wetaherproof power supply and thermal valve per selection menus
FILTRATION STAGES:
Stage 1 = 1 micron [uM] spun filter for removal of sand, clay, silt, dirt, particles and solids
Stage 2 = 0.5uM silver infused carbon block for reduction of bacteria, cysts, pesticides, herbicides, as well as a wide range of impurities in water
Stage 3 = stainless steel UV steriliser eliminates 99.99% bacteria + micro-organisms up to 50 litres per min [lamp lasts 12 months] with this combination of pre-filters and UV
INCLUDES:
- 1x 220v-240v UV ballast per selection
- 1x housing ring spanner as pictured
This unit has a 12-month warranty which is subject to our warranty terms and conditions, regular filter changes to be done as recommended using our replacement filters, media and consumables and is installed with a pressure reducing valve and leak shut off device.
Warranty does not cover UV bulb, as this is considered a consumable, there is a 30 day replacement guarantee on faulty bulbs. You will need to be able to verify that you have used a power surge protector with this system as the bulbs and ballast / transformer can be damaged by power surges [the ballast / transformer has a 12 month warranty].
Important Note: It is non-compliant to install filters to town mains water supply under constant hydro-static pressure if they do not have Watermark certification and your plumber may refuse to install this unit to mains supply if you select the option without Watermark. If only used on tank water without any connection to town mains water supply you don't need a unit with Watermark certification.
In some cases stock images have been used for this listing and may vary slightly from those supplied.
